Hier finden Sie verschiedene Tipps und Tricks rund um C#, .NET und Visual Studio (Verschieden Versionen).

Diese tritt beim abfragen von Fenstertitel der Anwendungen auf, der Code dazu:

public string Text
   {
    get
   {
    try
   {
    StringBuilder title = new StringBuilder(260, 260);
    UnManagedMethods.GetWindowText(this.hWnd, title, title.Capacity);
    return title.ToString();
   }
    catch{return "";}
   }
   }

private class UnManagedMethods
   {
    [DllImport("user32", CharSet = CharSet.Auto)]
    public extern static int GetWindowText(IntPtr hWnd, StringBuilder lpString,     int cch);
    ...
   }

Der code wird in Visual Studio 2019 im Debug Modus ausgeführt. Wie kann man dieses „hängen bleiben“ erkennen und abbrechen, gibt es da überhaupt eine Möglichkeit?

Wenn man im Debug Modus anhält, dann werden auch keine Windows-Nachrichten mehr verarbeitet. Das heißt, die COM-Komponente verarbeitet eine Windows-Nachricht, die verursacht, dass in deinen Code gesprungen wird. Sollte dann binnen 60 Sekunden keine Rückantwort kommen, dann erhälst Du diese Fehlermeldung, weil die COM Komponente keine weiteren Nachrichten verarbeiten kann derweil.

Einfach die Exception in den Visual Studio Einstellungen abschalten.

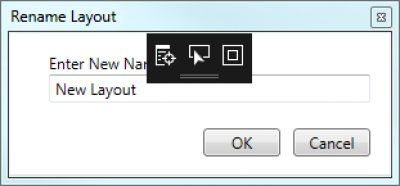

Die Standardeinstellungen in Visual Studio 2019 zeigt oben auf jedem WPF Fenster zusätziche Tool zum debugen des Programm an. Nachteil ist, dass damit auch darunterliegende Komponenten verdeckt werden. Mit folgenden Schritten lässt sich das auch ausschalten:

English Version : Tools → Options → Debugging → General → Enable UI Debugging Tools for XAML Deutsche Version : Extras → Optionen → Debugging → Allgemein → UI-Debugtool für XAML aktivieren

Setzen oder entfernen Sie einfach das Häckchen.

Wie wir alle wissen gibt es Methoden die uns die Mausposition relativ zu anderen controls zurückgibt. Doch manchmal möchte wir auch die Mausposition ausserhalb des Fensters wissen. Diese Kurzanleitung soll einen kleinen Tipp sein.

#Mit folgenden zwei Methoden lässt sich die Mausposition relativ zu einem control ermitteln:
Mouse.GetPosition(IInputElement relativeTo)
MouseEventArgs.GetPosition(IInputElement relativeTo).

Bei diesem Beispiel wird die Mausposition auf der obersten Titelleiste (WindowTitle) angezeigt. Die Koordination sind innerhalb des Fensters auf die Zeichnungsfläche bezogen und ausserhalb des Fensters werden die Screen Koordinaten angezeigt.

namespace CoreLoader.Views


{
    /// <summary>
    /// Interaction logic for Main.xaml
    /// </summary>
    public partial class Main : Window
    {
        public Main(object datacontex)
        {
            InitializeComponent();
            DataContext = datacontex;

            CompositionTarget.Rendering += OnRendering;
        }

        private void OnRendering(object sender, EventArgs e)
        {
            var x = Mouse.GetPosition(this).X;
            var y = Mouse.GetPosition(this).Y;
            this.Title = Math.Round(y, 0).ToString() + " | " + Math.Round(x, 0).ToString();
        }
    }
}

Der Event OnRendering() wird vor dem Zeichnen des WPF Fenster ausgeführt. Dieses Beispiel ist eine verkürzte Abschrift und wurde zur Sicherung kopiert.

--Denis Troller

How to test internal classes? (microsoft,) 2019-12-10 by Johnny Graber

One of the most important concepts of object-oriented design is encapsulation. You try to hide all the internal things of a class from the other developers and only offer them a subset of functionality to use. You can achieve this by setting an appropriate access modifier for your methods and classes:

• public: The type or member can be accessed by any other code in the same assembly or another assembly that references it.
• private: The type or member can be accessed only by code in the same class or struct.
• protected: The type or member can be accessed only by code in the same class, or in a class that is derived from that class.
• internal: The type or member can be accessed by any code in the same assembly, but not from another assembly.
• protected internal: The type or member can be accessed by any code in the assembly in which it is declared, or from within a derived class in another assembly. (as in protected OR internal)
• private protected: The type or member can be accessed only within its declaring assembly, by code in the same class or in a type that is derived from that class. (as in private OR protected)

Public and private are the two most used access modifiers. You find them in all the examples, they are straight forward to use and do exactly what you expect. They are a great help to manage access to the methods in your classes and the classes themselves.

If we look at bigger parts of our application, we use code from different assemblies or NuGet packages. Those distribution formats have their own boundaries that you can use to enforce encapsulation. Public and private access modifiers are again a great help. However, over the years I appreciated the internal access modifier more and more.

There is always that code that you need but has no place to go. It is not a class on its own and it does not fit to any other. At some point you stop searching for the right place and put it into a class called MyHelper. That code can’t be private, then many of your classes need them. And you do not want to make it public, then this code should not be called from outside your assembly.

The internal access modifier is exactly made for such use cases. By declaring the class or just a few methods as internal, you can access them from everywhere in your assembly but not from outside. All you need to do is to write internal instead of public or private:

public class MyHelper
{
    internal string InternalMethod()
    {
        return "should only be visible to the class itself & tests";
    }

    public string PublicMethod()
    {
        return "Everyone can call this method";
    }

    private string PrivateMethod()
    {
        return "you should not be able to call this directly";
    }
}

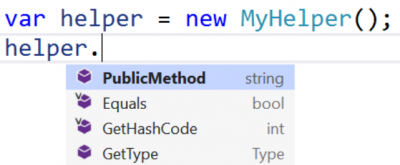

The users of your assembly or NuGet package do not know that this helper method exist. That allows you to freely move that code around to a better location or refactor it until you find a more fitting abstraction. All that without the need to change code outside your assembly – then no one else can call it directly.

That helper code you marked with internal is most often important. Therefore, you should write extensive tests for those classes and methods. But how can you do that when you can’t access that code from outside your assembly?

The .NET Framework offers the InternalsVisibleTo attribute to specify which other assemblies can access the internal methods and classes inside this assembly. All you need to do is to add this attribute to the AssemblyInfo.cs file and pass the name of your test assembly to the constructor:

[assembly: InternalsVisibleTo("Logic.Tests")]

When you put this attribute to the AssemblyInfo.cs file, then all internal methods can be accessed by code inside the Logic.Tests assembly. To test your internal code this behaviour is exactly what you want. If this is too much, you can add this attribute in a specific class and only allow access to the internal methods of this class.

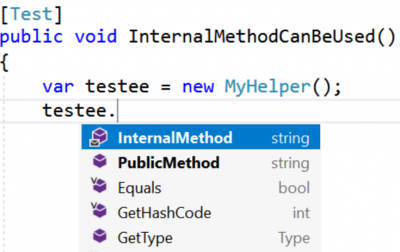

As soon as you recompile your assembly, the code in your test assembly can access your internal methods:

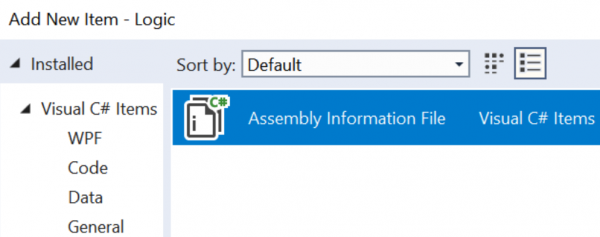

In .Net Core you do not have an AssemblyInfo.cs file. You can add one with the Add New Item dialog and set the attribute there in the same way you would do that in the .Net Full Framework and get exactly the same benefits.

As pointed out by Miguel Alho in the comments, you can add an ItemGroup in your *.csproj file to get the same effect. For that, paste this code as the last block before the closing project tag:

<ItemGroup>
  <AssemblyAttribute Include="System.Runtime.CompilerServices.InternalsVisibleTo">
    <_Parameter1>Logic.Tests</_Parameter1>
  </AssemblyAttribute>
</ItemGroup>

Use the internal access modifier the next time you have helper code that you need but no one else should call. This little keyword will help you to hide your mess inside your assembly and still allows you to write tests. With internal you get the best of both worlds without breaking encapsulation.

2019-12-10 by Johnny Graber

interface IFooViewModel : INotifyPropertyChanged
{
    List<FooViewModel> Children { get; }
    bool? IsChecked { get; set; }
    bool IsInitiallySelected { get; }
    string Name { get; }
}

/// <summary>
/// Gets/sets the state of the associated UI toggle (ex. CheckBox).
/// The return value is calculated based on the check state of all
/// child FooViewModels.  Setting this property to true or false
/// will set all children to the same check state, and setting it
/// to any value will cause the parent to verify its check state.
/// </summary>
public bool? IsChecked
{
    get { return _isChecked; }
    set { this.SetIsChecked(value, true, true); }
}

void SetIsChecked(bool? value, bool updateChildren, bool updateParent)
{
    if (value == _isChecked)
        return;

    _isChecked = value;

    if (updateChildren && _isChecked.HasValue)
        this.Children.ForEach(c => c.SetIsChecked(_isChecked, true, false));

    if (updateParent && _parent != null)
        _parent.VerifyCheckState();

    this.OnPropertyChanged("IsChecked");
}

void VerifyCheckState()
{
    bool? state = null;
    for (int i = 0; i < this.Children.Count; ++i)
    {
        bool? current = this.Children[i].IsChecked;
        if (i == 0)
        {
            state = current;
        }
        else if (state != current)
        {
            state = null;
            break;
        }
    }
    this.SetIsChecked(state, false, true);
}

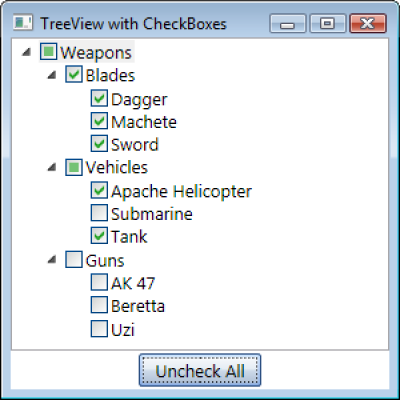

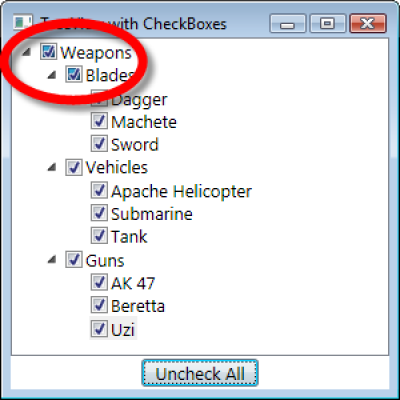

<TreeView
  x:Name="tree"
  ItemContainerStyle="{StaticResource TreeViewItemStyle}"
  ItemsSource="{Binding Mode=OneTime}"
  ItemTemplate="{StaticResource CheckBoxItemTemplate}"
  />
</code
The TreeView’s ItemsSource property is implicitly bound to its DataContext, which inherits a List<FooViewModel> from the containing window. That list only contains one ViewModel object, but it is necessary to put it into a collection because ItemsSource is of type IEnumerable.

TreeViewItem is a container of visual elements generated by the ItemTemplate. In this demo, we assign the following HierarchicalDataTemplate to the tree's ItemTemplate property:

<code C# [enable_line_numbers="true",highlight_lines_extra="0,"]>
<HierarchicalDataTemplate
  x:Key="CheckBoxItemTemplate"
  ItemsSource="{Binding Children, Mode=OneTime}"
  >
  <StackPanel Orientation="Horizontal">
    <!-- These elements are bound to a FooViewModel object. -->
    <CheckBox
      Focusable="False"
      IsChecked="{Binding IsChecked}"
      VerticalAlignment="Center"
      />
    <ContentPresenter
      Content="{Binding Name, Mode=OneTime}"
      Margin="2,0"
      />
  </StackPanel>
</HierarchicalDataTemplate>

/// <summary>
/// Handles changes to the IsVirtualToggleButton property.
/// </summary>
private static void OnIsVirtualToggleButtonChanged(
  DependencyObject d, DependencyPropertyChangedEventArgs e)
{
    IInputElement element = d as IInputElement;
    if (element != null)
    {
        if ((bool)e.NewValue)
        {
            element.MouseLeftButtonDown += OnMouseLeftButtonDown;
            element.KeyDown += OnKeyDown;
        }
        else
        {
            element.MouseLeftButtonDown -= OnMouseLeftButtonDown;
            element.KeyDown -= OnKeyDown;
        }
    }
}

private static void OnKeyDown(object sender, KeyEventArgs e)
{
    if (e.OriginalSource == sender)
    {
        if (e.Key == Key.Space)
        {
            // ignore alt+space which invokes the system menu
            if ((Keyboard.Modifiers & ModifierKeys.Alt) == ModifierKeys.Alt)
                return;

            UpdateIsChecked(sender as DependencyObject);
            e.Handled = true;
        }
        else if (e.Key == Key.Enter &&
         (bool)(sender as DependencyObject)
         .GetValue(KeyboardNavigation.AcceptsReturnProperty))
        {
            UpdateIsChecked(sender as DependencyObject);
            e.Handled = true;
        }
    }
}

private static void UpdateIsChecked(DependencyObject d)
{
    Nullable<bool> isChecked = GetIsChecked(d);
    if (isChecked == true)
    {
        SetIsChecked(d,
         GetIsThreeState(d) ?
         (Nullable<bool>)null :
         (Nullable<bool>)false);
    }
    else
    {
        SetIsChecked(d, isChecked.HasValue);
    }
}

<Style x:Key="TreeViewItemStyle" TargetType="TreeViewItem">
  <Setter Property="IsExpanded" Value="True" />
  <Setter Property="IsSelected" Value="{Binding IsInitiallySelected, Mode=OneTime}" />
  <Setter Property="KeyboardNavigation.AcceptsReturn" Value="True" />
  <Setter Property="dw:VirtualToggleButton.IsVirtualToggleButton" Value="True" />
  <Setter Property="dw:VirtualToggleButton.IsChecked" Value="{Binding IsChecked}" />
</Style>

interface IFooViewModel : INotifyPropertyChanged
{
    List<FooViewModel> Children { get; }
    bool? IsChecked { get; set; }
    bool IsInitiallySelected { get; }
    string Name { get; }
}

///Ruft den Zustand des zugehörigen UI-Toggles (z.B. CheckBox) ab bzw. setzt ihn.
///Der Rückgabewert wird auf der Grundlage des Prüfstatus aller untergeordneten
///FooViewModelle berechnet.  Wenn diese Eigenschaft auf true oder false gesetzt wird,
///erhalten alle untergeordneten Modelle den gleichen Prüfstatus,
///und wenn sie auf einen beliebigen Wert gesetzt wird, überprüft das übergeordnete Modell seinen Prüfstatus.
public bool? IsChecked
{
    get { return _isChecked; }
    set { this.SetIsChecked(value, true, true); }
}

void SetIsChecked(bool? value, bool updateChildren, bool updateParent)
{
    if (value == _isChecked)
        return;

    _isChecked = value;

    if (updateChildren && _isChecked.HasValue)
        this.Children.ForEach(c => c.SetIsChecked(_isChecked, true, false));

    if (updateParent && _parent != null)
        _parent.VerifyCheckState();

    this.OnPropertyChanged("IsChecked");
}

void VerifyCheckState()
{
    bool? state = null;
    for (int i = 0; i < this.Children.Count; ++i)
    {
        bool? current = this.Children[i].IsChecked;
        if (i == 0)
        {
            state = current;
        }
        else if (state != current)
        {
            state = null;
            break;
        }
    }
    this.SetIsChecked(state, false, true);
}

<TreeView
  x:Name="tree"
  ItemContainerStyle="{StaticResource TreeViewItemStyle}"
  ItemsSource="{Binding Mode=OneTime}"
  ItemTemplate="{StaticResource CheckBoxItemTemplate}"
  />
</code
The TreeView’s ItemsSource property is implicitly bound to its DataContext, which inherits a List<FooViewModel> from the containing window. That list only contains one ViewModel object, but it is necessary to put it into a collection because ItemsSource is of type IEnumerable.

TreeViewItem is a container of visual elements generated by the ItemTemplate. In this demo, we assign the following HierarchicalDataTemplate to the tree's ItemTemplate property:

<code C# [enable_line_numbers="true",highlight_lines_extra="0,"]>
<HierarchicalDataTemplate
  x:Key="CheckBoxItemTemplate"
  ItemsSource="{Binding Children, Mode=OneTime}"
  >
  <StackPanel Orientation="Horizontal">
    <!-- These elements are bound to a FooViewModel object. -->
    <CheckBox
      Focusable="False"
      IsChecked="{Binding IsChecked}"
      VerticalAlignment="Center"
      />
    <ContentPresenter
      Content="{Binding Name, Mode=OneTime}"
      Margin="2,0"
      />
  </StackPanel>
</HierarchicalDataTemplate>

/// <summary>
/// Behandelt Änderungen an der Eigenschaft IsVirtualToggleButton.
/// </summary>
private static void OnIsVirtualToggleButtonChanged(
  DependencyObject d, DependencyPropertyChangedEventArgs e)
{
    IInputElement element = d as IInputElement;
    if (element != null)
    {
        if ((bool)e.NewValue)
        {
            element.MouseLeftButtonDown += OnMouseLeftButtonDown;
            element.KeyDown += OnKeyDown;
        }
        else
        {
            element.MouseLeftButtonDown -= OnMouseLeftButtonDown;
            element.KeyDown -= OnKeyDown;
        }
    }
}

private static void OnKeyDown(object sender, KeyEventArgs e)
{
    if (e.OriginalSource == sender)
    {
        if (e.Key == Key.Space)
        {
            // ignore alt+space which invokes the system menu
            if ((Keyboard.Modifiers & ModifierKeys.Alt) == ModifierKeys.Alt)
                return;

            UpdateIsChecked(sender as DependencyObject);
            e.Handled = true;
        }
        else if (e.Key == Key.Enter &&
         (bool)(sender as DependencyObject)
         .GetValue(KeyboardNavigation.AcceptsReturnProperty))
        {
            UpdateIsChecked(sender as DependencyObject);
            e.Handled = true;
        }
    }
}

private static void UpdateIsChecked(DependencyObject d)
{
    Nullable<bool> isChecked = GetIsChecked(d);
    if (isChecked == true)
    {
        SetIsChecked(d,
         GetIsThreeState(d) ?
         (Nullable<bool>)null :
         (Nullable<bool>)false);
    }
    else
    {
        SetIsChecked(d, isChecked.HasValue);
    }
}

<Style x:Key="TreeViewItemStyle" TargetType="TreeViewItem">
  <Setter Property="IsExpanded" Value="True" />
  <Setter Property="IsSelected" Value="{Binding IsInitiallySelected, Mode=OneTime}" />
  <Setter Property="KeyboardNavigation.AcceptsReturn" Value="True" />
  <Setter Property="dw:VirtualToggleButton.IsVirtualToggleButton" Value="True" />
  <Setter Property="dw:VirtualToggleButton.IsChecked" Value="{Binding IsChecked}" />
</Style>

Original Artike von Josh Smith. Erste Übersetzung mit Deepl.] [[|
